Manufacturer: Three D Traffic Works

Portable Delineators, two pieces with T top, Ring top, or Open top handles

  • Fast set up and installation.
  • Available with any grade of reflective sheeting.
  • Fluorescent Orange color is standard. Other colors are available by custom order. Please consult with the factory for other color choices.
  • 100% recycled rubber base in various weights

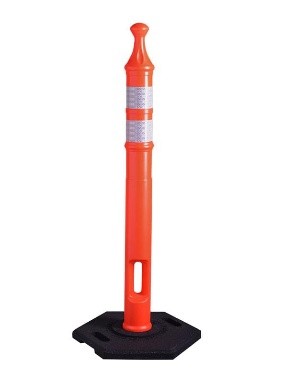

Ring top Delineators

Features:

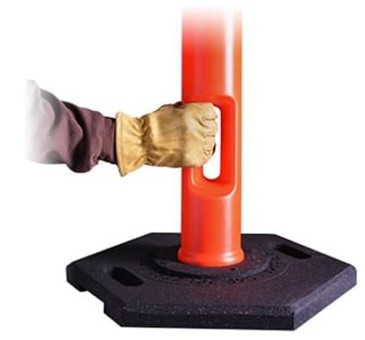

  • Large opening for easy handling.
  • Has a caution tape knob for wrap around application.
  • Reinforced bolt hole for warning lights.
  • Support rings around reflective bands for added tape protection.
  • Made from high impact polyethylene utilizing polymer protection UV stabilizer.

Specifications:

Base Color:Black
Base Dimensions:16" Octagonal, 1.75”, 1.65" & 1.375" height
Base Material:100% post-consumer recycled rubber
Base Weight:8, 10, 12, 15, and 18 pounds
Colors:Fluorescent Orange or White
Height of Sheeting Above Roadway:37.50" & 40.75"
Height:44.75 and 48.50"
Post Diameter: Round:4.00"
Post Material:HDPE with polymer protection UV stabilizer
Post Sheeting:Many options available
Recycled Content:90% overall

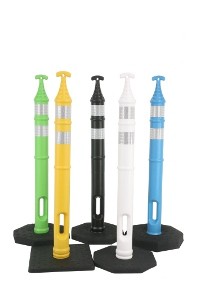

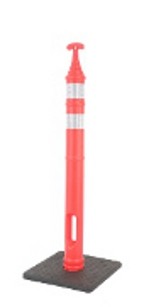

T-Top Delineators

 Features:

  • "Easy to Grab" T-Grip top handle.
  • Tube material is 95% Post-Consumer Recycled Content high impact polyethylene utilizing polymer protection UV stabilizer.
  • Support rings around reflective bands for added tape protection.
  • All sheeting meets ASTM 4956 requirements.
  • The TD5100T T-Grip Delineator is available in Fluorescent Orange with other colors available upon request. Please contact the factory.
  • Meets EPA Guidelines for Recycled Content.
  • Available with 100% Post-Consumer Recycled Rubber Bases in an extensive selection of weights. See Specifications.

Specifications:

Base Dimensions:16" Octagonal, 1.75”, 1.65" & 1.375" height
Base Material:100% post-consumer recycled rubber
Base Weight:8, 10, 12, 15, and 18 pounds
Base Color:Black
Diameter:4
Height:48
Height of Sheeting Above Roadway:42
Material:95% Post-Consumer Recycled Content HD Polyethylene that is Dioxin-Free.
Post Color:Standard color: Fluorescent Orange. Others upon request.
Recycled Content:Tube is 95% Post-Consumer; Rubber Bases are 100% Post-Consumer Recycled Content.
Reflective Sheeting:Many grades available.
Width:Tube bottom is 6.500.


Oen Top Delineators

Features:

  • Manufactured from 100% Post-Consumer Recycled Plastic in a specially formulated plastic compound utilizing polymer protection UV stabilizer.

  • Fast set up and installation.

  • Available with any grade of reflective sheeting.

  • Fluorescent Orange color is standard. Other colors available by custom order. Please consult with the factory for other color choices.

Specifications:

Base Color:Black
Base Dimensions:1.375" to 2.750" height and 16.00" diameter
Base Material:100% post-consumer recycled rubber
Base Weight:8, 10, 12, 15, and 18 pounds
Post Color:Fluorescent Orange.
Post Diameter: Round:4.00"
Post Dimensions: Flattened, Length, etc.:Available in 18, 28, 36, 39, or 42-inch heights
Post Material:HDPE with polymer protection UV stabilizer
Reflective Sheeting:Many options upon request
